FDL Viewer

A PySide6 desktop application for visualizing, analyzing, and transforming ASC FDL (Framing Decision List) files interactively.

Install & Launch

pip install asc-fdl-viewer

fdl-viewer                     # launch empty
fdl-viewer path/to/scene.fdl   # launch with file pre-loaded

Requires PySide6 and OpenImageIO.

Screenshots

Source Tab

Displays the source canvas with layered geometry overlays -- canvas outline, effective dimensions, protection area, and framing decision. Reference images can be loaded as a background layer.

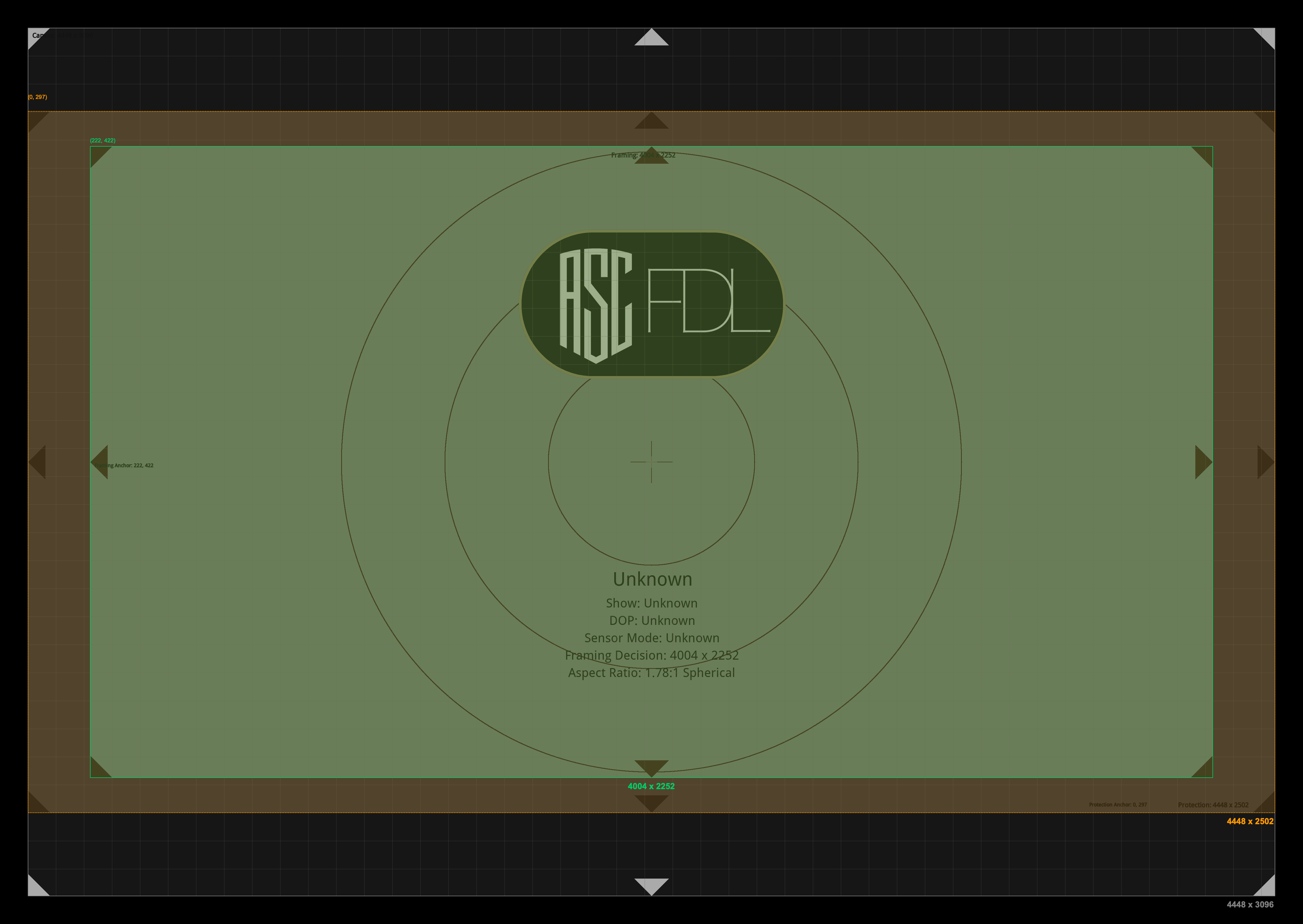

Source tab showing layered geometry

Output Tab

Shows the result of applying a canvas template. The HUD displays source dimensions, output dimensions, and template parameters (fit method, alignment, scale factor, translation).

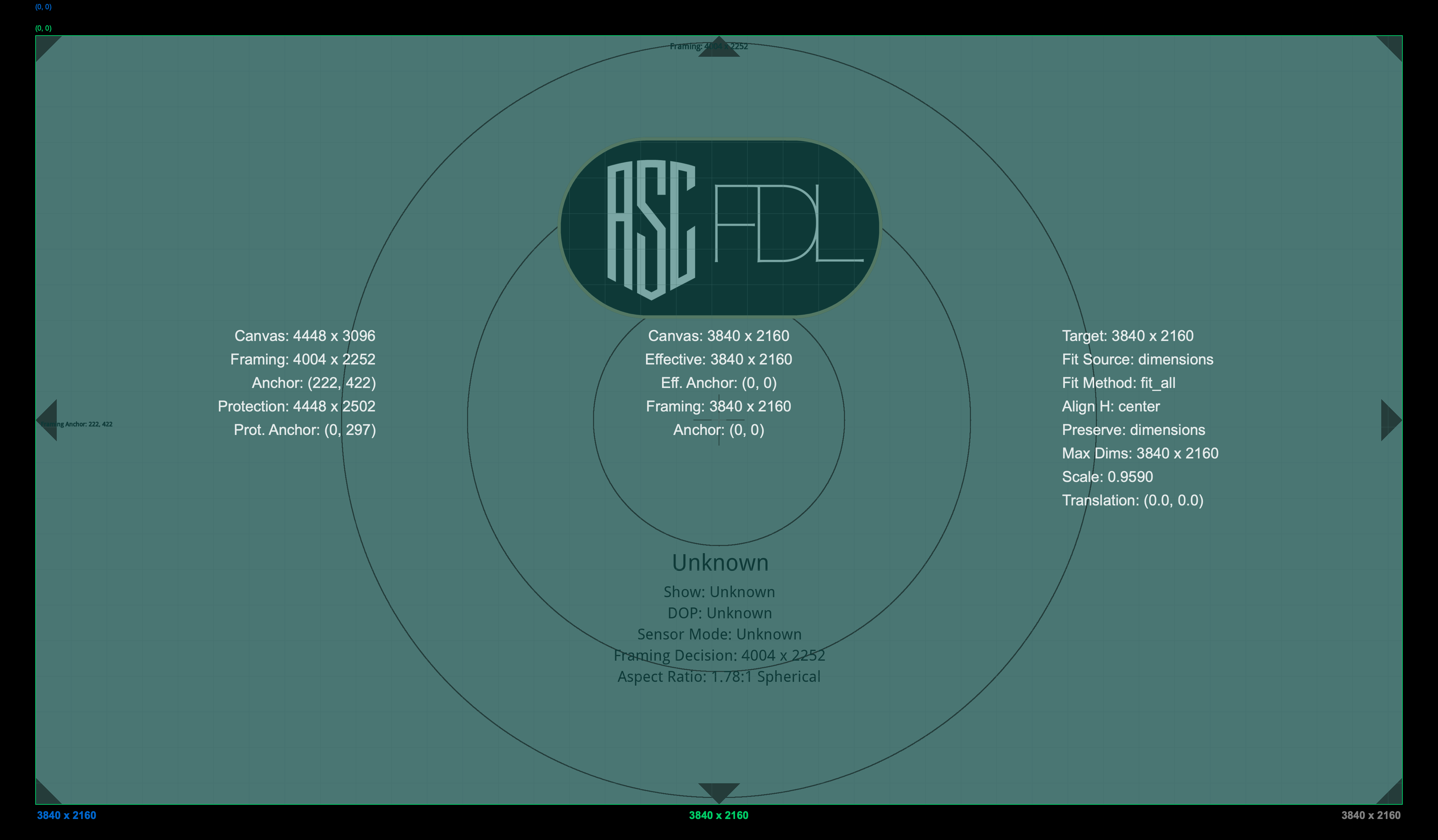

Output tab with HUD overlay

Comparison View

Side-by-side or slider-based comparison of source and output transformations, useful for verifying template results.

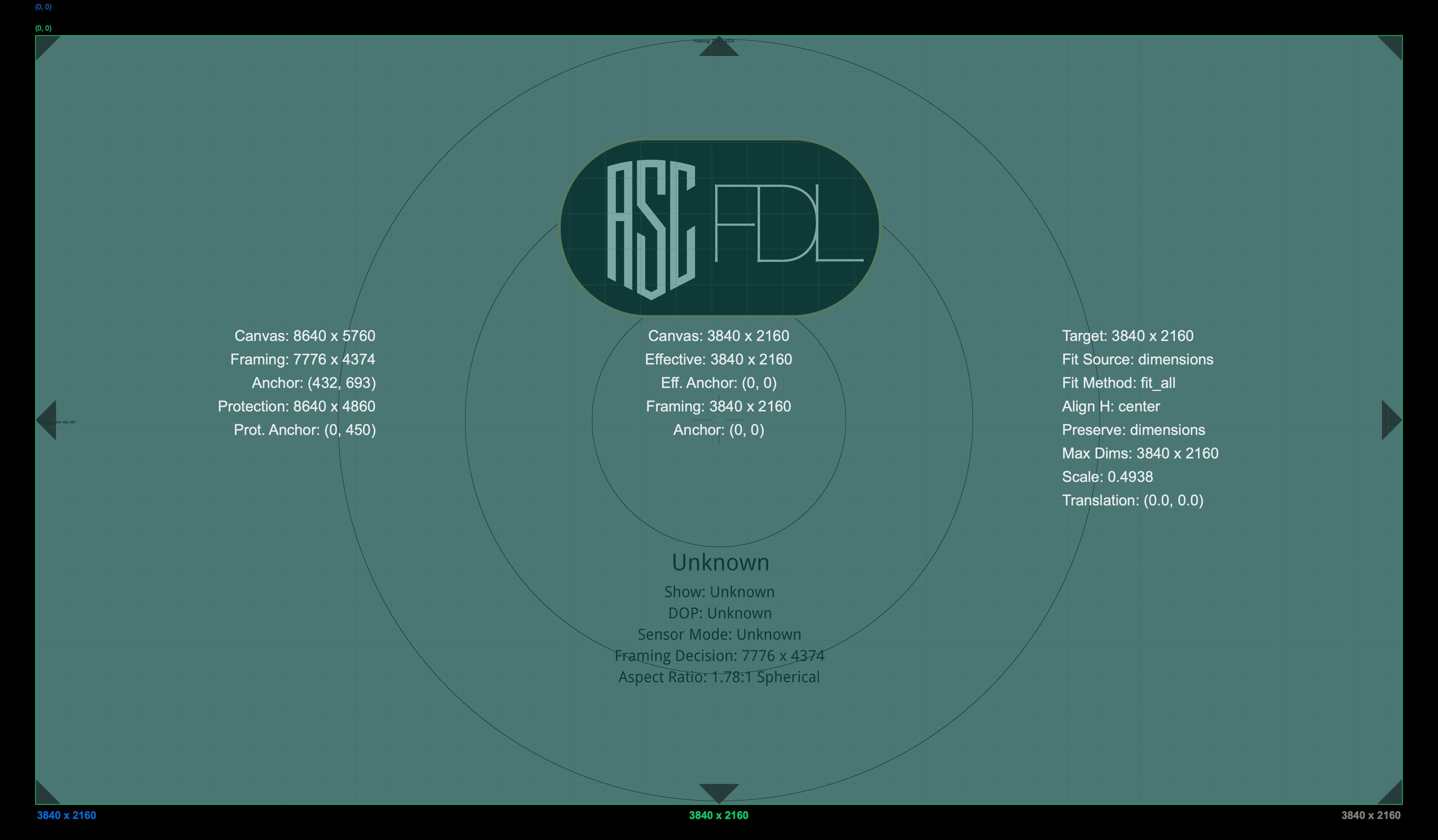

Comparison view

Anamorphic Example

Source and output for a RED EPIC with 2x anamorphic squeeze. The elliptical reference circle indicates the squeeze ratio.

Anamorphic source (RED EPIC)

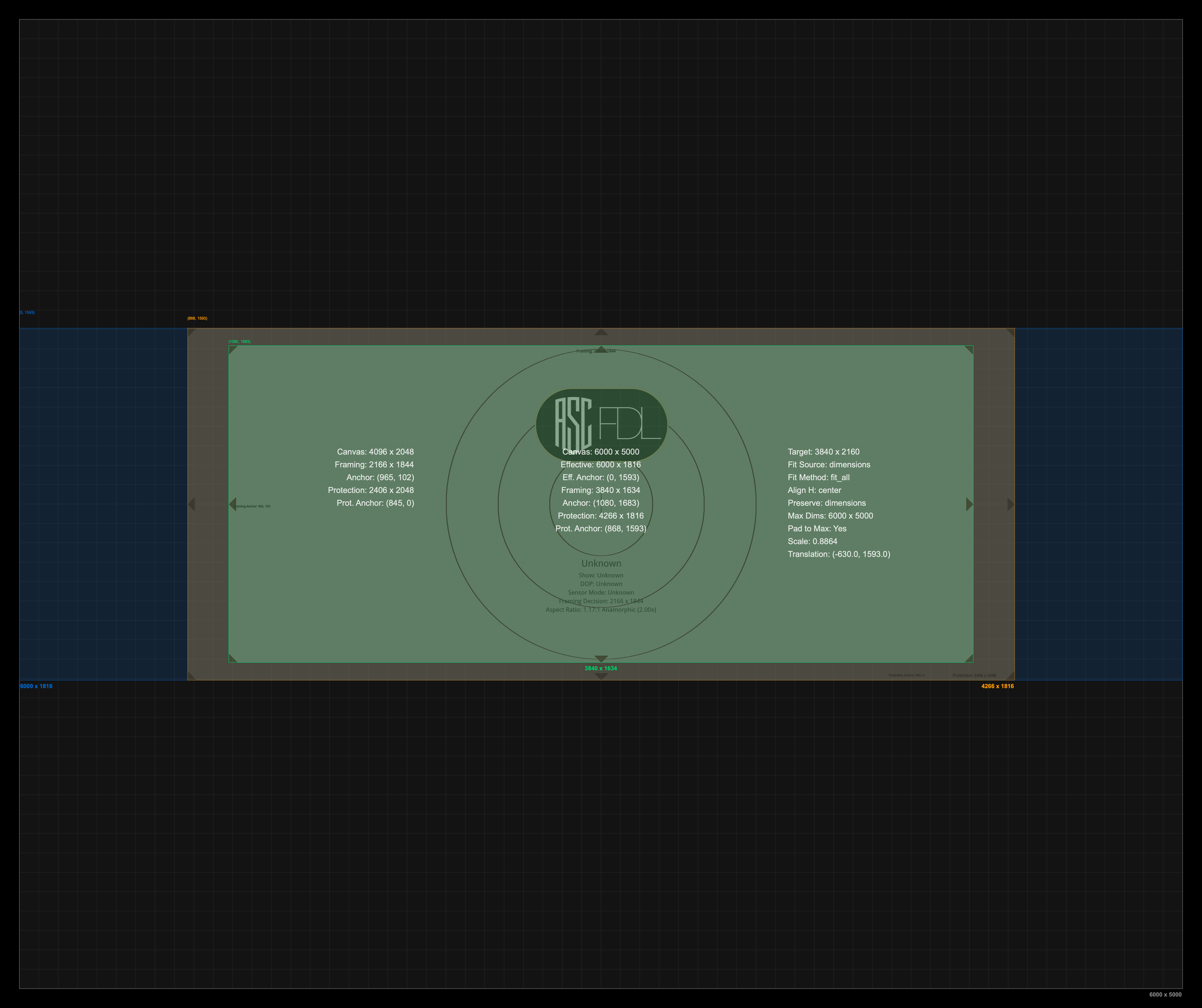

Anamorphic output with pad-to-maximum

Features

  • Canvas geometry visualization -- nested rectangles for canvas, effective, protection, and framing layers with labeled dimensions and anchor points
  • Template application -- select a canvas template and apply it to a source canvas/framing decision; view the result immediately
  • Image overlay -- load EXR, PNG, TIFF, JPG, or DPX reference images as a background layer with adjustable opacity
  • Side-by-side comparison -- source and output tabs with a slider-based comparison mode
  • Unit test export -- capture the current source/template/output combination as a pytest scenario for regression testing
  • Layer visibility controls -- toggle individual layers on/off via sidebar checkboxes or the toolbar
  • Details tab -- transformation metrics, JSON export, and clipboard copy

Layer Colors

Layer Color Description
Canvas Gray Full sensor / recording area
Effective Orange Effective (active) image area
Protection Orange-red (dashed) Safety / action-safe zone
Framing Green Framing decision area

Architecture

The viewer follows a Model-View-Controller pattern with reactive state management via Qt signals.

Models

Class File Purpose
AppState models/app_state.py Singleton state with ~20 Qt signals for reactive UI updates
FDLModel models/fdl_model.py Qt-aware FDL wrapper with computed geometry properties
RecentFilesModel models/recent_files.py Recently opened file tracking
TemplatePresetsModel models/template_presets.py Template preset management

Controllers

Seven controllers handle business logic:

Controller Purpose
FileController FDL file load/save
ImageController Image loading and format conversion via OpenImageIO
TransformController Template application logic
SelectionController Cascading context/canvas/framing selection
TemplateController Template selection and preset handling
ExportController FDL export and JSON clipboard operations
UnitTestExportController Test case generation for regression testing

Views

29 view components organized by area:

  • Main window -- MainWindow with menu bar and status bar
  • Sidebar -- file loader (drag-drop), source selector (cascading dropdowns), template editor, visibility toggles
  • Tabs -- source, output, comparison, details
  • Canvas -- CanvasRenderer (geometry drawing engine), CanvasWidget (interactive QGraphicsView), visibility toolbar
  • Dialogs -- export unit test dialog, error dialog
  • Common -- collapsible sections, dimension editors, file drop zones

Building a Standalone App

The viewer can be packaged as a standalone desktop application using PyInstaller:

cd packages/fdl_viewer
./build.sh

The PyInstaller spec file (FDL Viewer.spec) is included in the package root.

Source

packages/fdl_viewer/src/fdl_viewer/
