Frameline Generator

Generates pixel-accurate frameline overlay images from ASC FDL files. Supports raster output (EXR, PNG, TIFF, JPG, DPX) via OpenImageIO and vector output (SVG) via a custom backend.

Install

pip install asc-fdl-frameline-generator

Requires OpenImageIO for raster formats. SVG output works without it.

Example Output

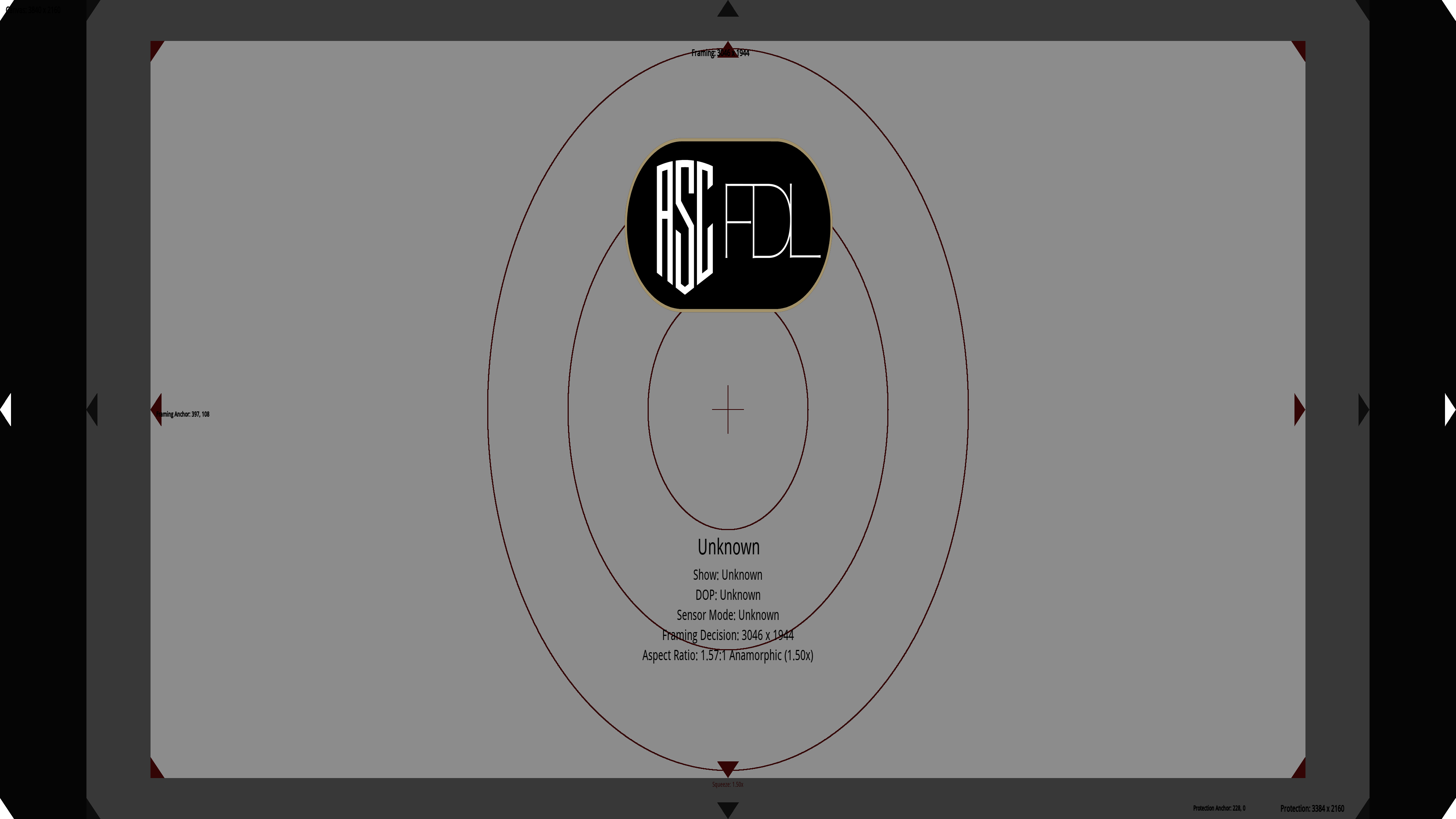

A frameline overlay showing canvas (gray), effective (blue), protection (dashed orange), and framing (green) layers with dimension labels, anchor points, anamorphic squeeze reference circle, crosshair, ASC FDL logo, and metadata:

Quick Start

# Basic raster output (format from extension)
fdl-frameline input.fdl output.png

# SVG vector output with grid, no logo
fdl-frameline input.fdl output.svg --hide-logo --show-grid

# Select specific context/canvas/framing
fdl-frameline input.fdl output.exr --context "Camera A" --canvas abc123

# Add metadata overlay
fdl-frameline input.fdl output.png \
    --camera "ARRI Alexa Mini LF" \
    --show-name "My Show" \
    --dop "Jane Doe" \
    --sensor-mode "Open Gate"

CLI Reference

Required Arguments

Argument	Description
input	Path to the FDL file
output	Output image path (format auto-detected from extension)

FDL Selection

Flag	Description	Default
--context LABEL	Context to use	First context
--canvas ID	Canvas ID	First canvas
--framing ID	Framing decision ID	First framing decision

Layer Visibility

All layers are shown by default unless noted.

Show	Hide	Layer
--show-canvas	--hide-canvas	Canvas outline
--show-effective	--hide-effective	Effective dimensions
--show-protection	--hide-protection	Protection area
--show-framing	--hide-framing	Framing decision
--show-squeeze-circle	--hide-squeeze-circle	Anamorphic squeeze reference
--show-labels	--hide-labels	Dimension and anchor labels
--show-crosshair	--hide-crosshair	Center crosshair
--show-grid		Grid overlay (default: off)
--show-logo	--hide-logo	ASC FDL logo
--show-metadata	--hide-metadata	Metadata overlay

Metadata Overlay

Flag	Description
--camera TEXT	Camera make/model (e.g., "ARRI Alexa Mini LF")
--show-name TEXT	Show name
--dop TEXT	Director of Photography
--sensor-mode TEXT	Sensor mode (e.g., "4K", "Open Gate")

Styling

Flag	Description	Default
--line-width INT	Line width in pixels	varies by layer
--font-size INT	Font size in pixels	auto
--font-path PATH	Custom TrueType font file	system default
--grid-spacing INT	Grid line spacing	100
--logo-path PATH	Custom logo image	bundled ASC FDL logo
--logo-scale FLOAT	Logo scale factor	0.333

Colors

Pass hex color values (e.g., #FF0000):

Flag	Default	Layer
--color-canvas	#808080	Canvas outline
--color-effective	#0066CC	Effective dimensions
--color-protection	#FF9900	Protection area
--color-framing	#00CC66	Framing decision

Output Formats

Extension	Format	Backend
.exr	OpenEXR	OpenImageIO
.png	PNG	OpenImageIO
.tif / .tiff	TIFF	OpenImageIO
.jpg	JPEG	OpenImageIO
.dpx	DPX	OpenImageIO
.svg	SVG	Custom SvgDocument

Programmatic Usage

The renderer can be used directly from Python:

from fdl_frameline_generator import FramelineRenderer, RenderConfig, LayerVisibility

config = RenderConfig(
    visibility=LayerVisibility(
        grid=True,
        squeeze_circle=True,
    ),
)

renderer = FramelineRenderer(config)

# From file path
renderer.render_from_fdl("input.fdl", "output.png")

# From FDL object
from fdl import read_from_file
fdl = read_from_file("input.fdl")
renderer.render_from_fdl_object(fdl, "output.exr")

# To SVG
svg_doc = renderer.render_to_svg(fdl)
svg_doc.write("output.svg")

Architecture

Module	Class / Purpose
renderer.py	FramelineRenderer -- main rendering orchestrator
config.py	RenderConfig, LayerVisibility -- configuration dataclasses
svg_backend.py	SvgDocument -- vector SVG output backend
colors.py	Color constants and RGBA utilities
cli.py	fdl-frameline command-line interface
primitives.py	Re-exports drawing primitives from asc-fdl-imaging
text.py	Re-exports text utilities from asc-fdl-imaging

The rendering pipeline:

1. Load FDL and select context/canvas/framing decision
2. Create an image buffer sized to the canvas dimensions
3. Render layers bottom-to-top: grid -> canvas -> effective -> protection -> framing
4. Add labels, crosshair, logo, and metadata
5. Write output in the requested format

Drawing primitives and text rendering are delegated to the asc-fdl-imaging package.

Source

packages/fdl_frameline_generator/src/fdl_frameline_generator/
